Oil pump 2,0 TDI compensation shaft module fit VW Audi Seat Skoda 03L115105D , 03L115105F

Oil pump 2,0 TDI compensation shaft module fit VW Audi Seat Skoda 03L115105D , 03L115105F

SKU: 1001127
GTIN: 4260554460637
HAN: 1001127
Category: 2,0 TDI
Manufacturers: MMHP

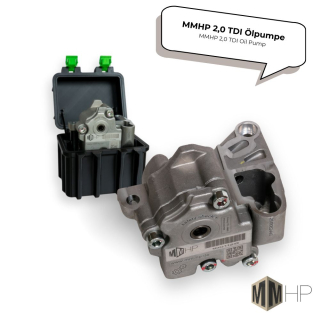

New oil pump for VW, Audi, Seat and Skoda 2.0 TDI with a balance shaft module (the part at the bottom of the engine that the oil pump is attached to). It fits the second version of the module, recognizable by the part number of the old pump, 03L115105D or 03L115105F.

Old pump starts with 03G115105? Then item 1001126 applies.

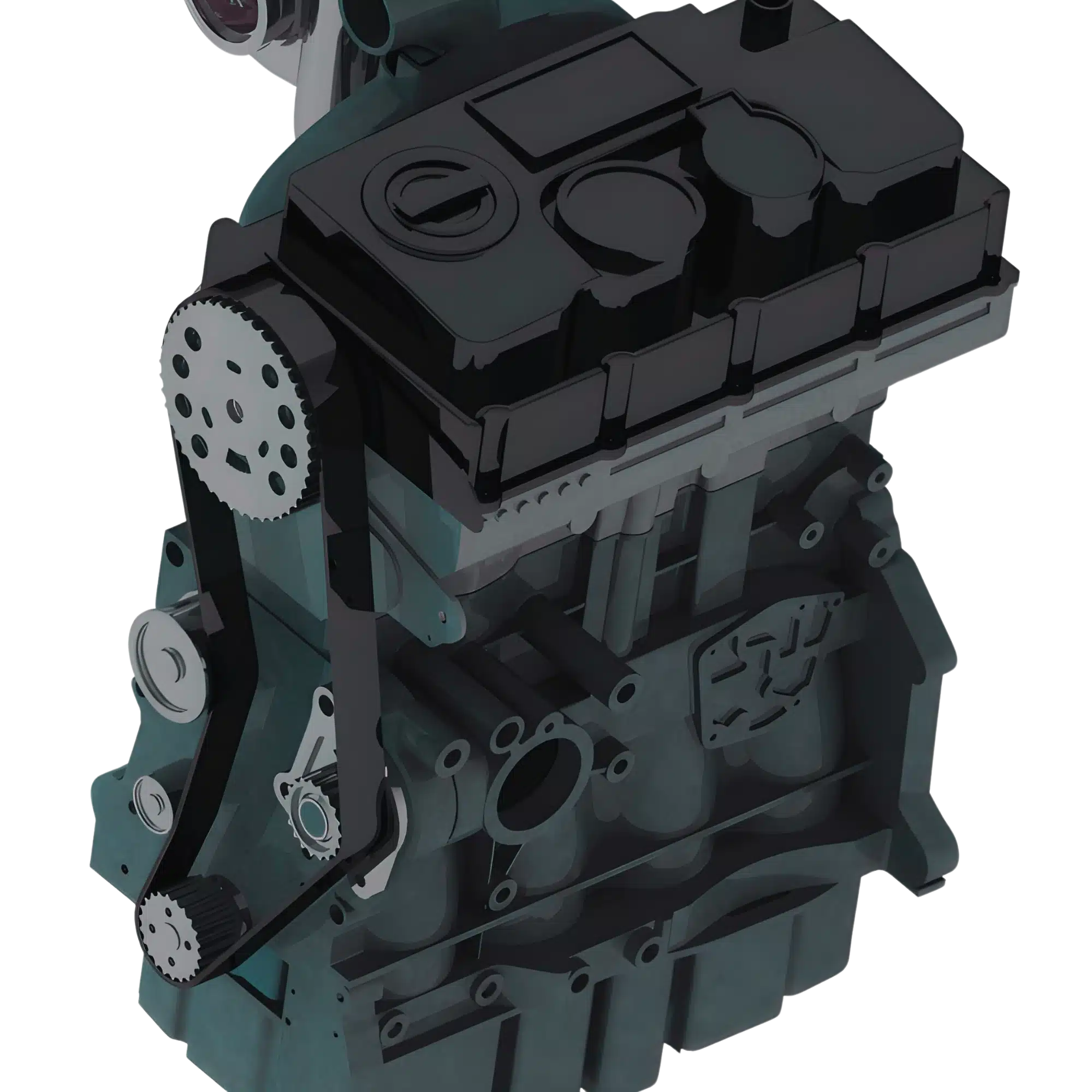

Replace or convert? Open the solution finder

174,00 €

Final price* , plus

Delivery status Available immediately

Delivery to

ArrivalfromThu, 22. Oct

LatestMon, 26. Oct

Ships on the next business day

from (earliest)possible daysweekendholidaylatest

Notes on shipping, weekends & holidays

Which engines does it fit?

Fits2.0 TDI (EA189) with second-version balancer shaft module: old pump 03L115105D or 03L115105F

Does not fitthe first version of the module, where the part number of the old pump starts with 03G115105 (for those: the oil pump, first version, item 1001126)

The part number of the old pump decidesIf in doubt, compare the OE number or ask us; check with the vehicle search.

Engine codes

Search engine code

CCH
CCHA
CCHB
CCHC
CCHD
CFC
CFCA
CFCB
CFF
CFFA
CFFB
CFFE
CFG
CFGA
CFGB
CFGC
CFGD
CGL
CGLA
CGLB
CGLC
CGLD
CGLE
CJC
CJCA
CJCB
CJCC
CJCD
CKR
CKRA
CLJA
CLJB
CLL
CLLA
CLLB
CMF
CMFA
CMFB
CMG
CMGA
CMGB
CSH
CSHA

Engine oil pump, second version

Old pump	03L115105D, 03L115105F
Scope of delivery	Pump, assembly aid, circlip, instructions
Installation	Oil pan off; best done together with the drive pin approx. 1 to 2 hours

Check vehicle

Understand first, then buy?

Read up before you orderOn our advice page you find out in three steps whether replacing the pump is enough or whether converting to a setup without the balancer shaft module is worthwhile for your engine.Go to the solution finder: replace or convert?

What it does

A worn oil pump in the balancer shaft module often goes unnoticed because the oil pressure warning light only warns late. Wear cannot be reliably detected even by checking the tooth flank clearance, so the pump is replaced while the module is open, before low oil pressure leads to engine damage in the worst case. The new pump has the bushing in factory dimensions so that the drive pin sits with little play.

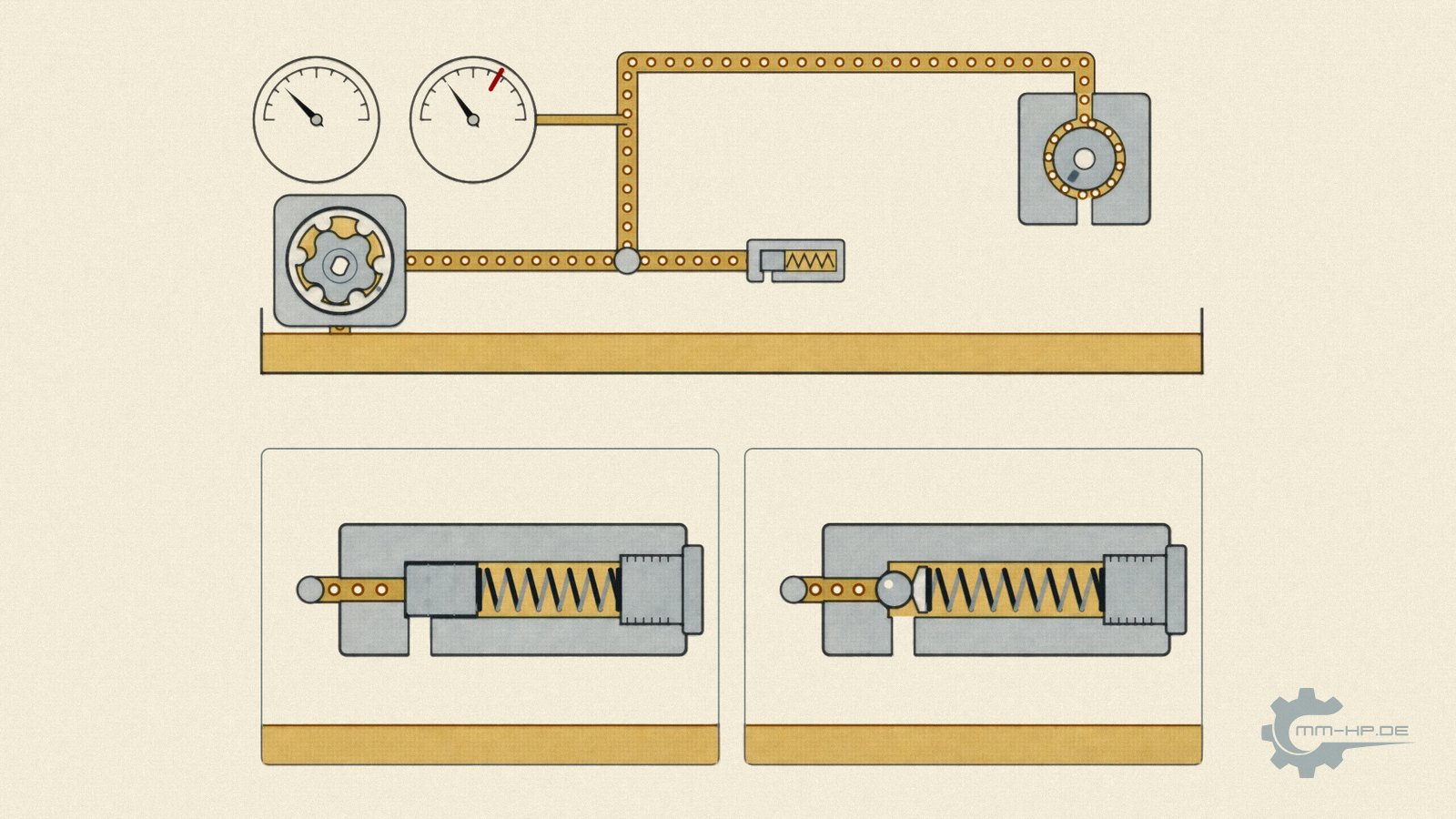

How to recognize a worn oil pump: technical knowledge base

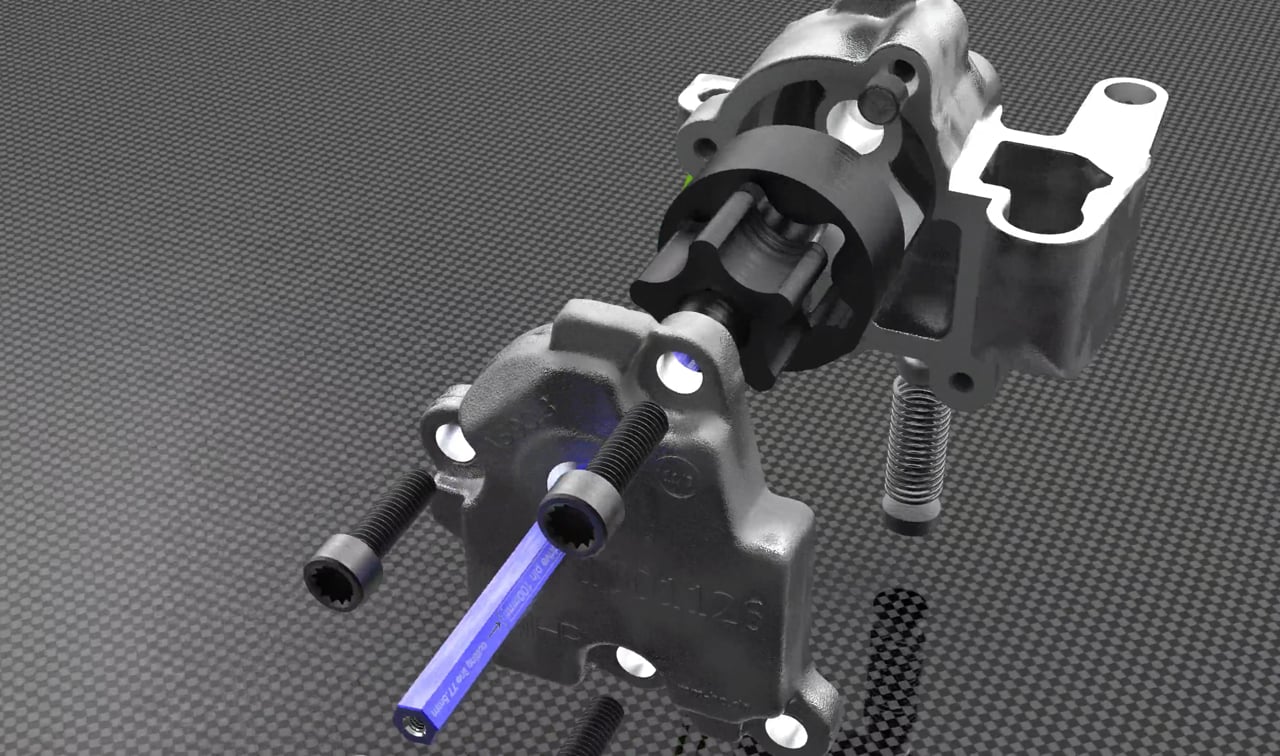

3D animation: stock oil pump in the balancer shaft module, drive pin highlighted in blue, 13 second video

3D animation: stock pump and drive pin

What do I get?

	Pump 1xEngine oil pump 1xAssembly aid for the drive pin 1xCirclip for the drive pin 1xInstallation instructions (German, English)

Also needed

Skills: Removing and refitting the oil pan, fitting drive pin and circlip
Tools: Torque wrench, general workshop tools
Test equipment: none

InstallationOil pan off; best done together with drive pin and oil change approx. 1 to 2 hours

How much does this pump deliver?

You are here: Stock (▲). This pump replaces the original pump at stock output: it delivers as much as stock, not more.

Stage 1 and Stage 2 in the graphic are only available with the conversion kit, which replaces module and stock pump.

More flow: the conversion kit

Oil flow over engine speed with a warm engine, typical driving profile; percentages relative to the stock pump at high rpm. Top line = stock maximum pressure: the relief valve limits every pump to it. Stage 2 reaches it at high rpm, which is by design. With cold oil every pump reaches it at once. From the MMHP pump chart.

You are here: Stock (▲). This pump delivers like the original.

Order with it

We recommend replacing the drive pin together with the pump.

The drive pin is the wear part between module and pump.

Replace at the same time

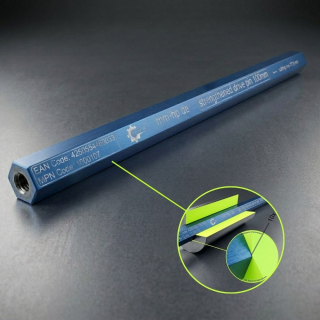

Reinforced drive pinDrives the pump and wears with it; replace it together with the pumpItem 1000107View product

The better solution

Instead of this item, not in addition

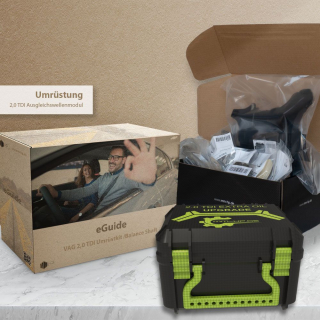

Conversion kit: remove the balancer shaft module completelyInstead of replacing pump and drive pin in the module, the kit removes module, hex and stock pump. You then need neither a new pump nor a drive pin.from 299,00 € · Item 1009790View conversion kit

In-depth: read more

For everyone who wants the details: articles from our technical knowledge base, free to read.

Still unsure? The advice page

Item information	Value

MMHP
Ludwig-Erhard-Str. 18
Hamburg, Deutschland, 20459

To the contact form

Engine codes 43 codes

CCH
CCHA
CCHB
CCHC
CCHD
CFC
CFCA
CFCB
CFF
CFFA
CFFB
CFFE
CFG
CFGA
CFGB
CFGC
CFGD
CGL
CGLA
CGLB
CGLC
CGLD
CGLE
CJC
CJCA
CJCB
CJCC
CJCD
CKR
CKRA
CLJA
CLJB
CLL
CLLA
CLLB
CMF
CMFA
CMFB
CMG
CMGA
CMGB
CSH
CSHA

OE numbers 9 numbers

03G115105A
03G115105C
03G115105D
03G115105E
03G115105F
03G115105G
03G115105H
03L115105D
03L115105F

Vehicles 256 rows, by make

AUDI/VW100 vehicles

Model	Engine	Years	kW / HP	HSN / TSN
A3 (8P1)	2.0 TDI	05/2003 – 08/2012	100 / 136	0588-827
A3 (8P1)	2.0 TDI	05/2003 – 08/2012	100 / 136	0588-ADQ
A3 (8P1)	2.0 TDI	05/2003 – 08/2012	100 / 136	0588-AHX
A3 (8P1)	2.0 TDI 16V	05/2003 – 08/2012	103 / 140	0588-835
A3 (8P1)	2.0 TDI 16V	05/2003 – 08/2012	103 / 140	0588-ADU
A3 (8P1)	2.0 TDI 16V	05/2003 – 08/2012	103 / 140	0588-AHZ
A3 (8P1)	2.0 TDI 16V quattro	08/2004 – 08/2012	103 / 140	0588-853
A3 (8P1)	2.0 TDI 16V quattro	08/2004 – 08/2012	103 / 140	0588-ADV
A3 (8P1)	2.0 TDI 16V quattro	08/2004 – 08/2012	103 / 140	0588-AIA
A3 (8P1)	2.0 TDI	03/2006 – 08/2012	125 / 170	0588-AAW
A3 (8P1)	2.0 TDI	03/2006 – 08/2012	125 / 170	0588-AIF
A3 (8P1)	2.0 TDI quattro	03/2006 – 08/2012	125 / 170	0588-AAV
A3 (8P1)	2.0 TDI quattro	03/2006 – 08/2012	125 / 170	0588-AIG
A3 Cabriolet (8P7)	2.0 TDI	04/2008 – 05/2013	100 / 136	8307-ABG
A3 Cabriolet (8P7)	2.0 TDI	04/2008 – 05/2013	103 / 140	8307-AAZ
A3 Sportback (8PA)	2.0 TDI 16V	09/2004 – 03/2013	103 / 140	0588-835
A3 Sportback (8PA)	2.0 TDI 16V	09/2004 – 03/2013	103 / 140	0588-ADU
A3 Sportback (8PA)	2.0 TDI 16V	09/2004 – 03/2013	103 / 140	0588-AHZ
A3 Sportback (8PA)	2.0 TDI 16V quattro	11/2005 – 03/2013	103 / 140	0588-853
A3 Sportback (8PA)	2.0 TDI 16V quattro	11/2005 – 03/2013	103 / 140	0588-ADV
A3 Sportback (8PA)	2.0 TDI 16V quattro	11/2005 – 03/2013	103 / 140	0588-AIA
A3 Sportback (8PA)	2.0 TDI	03/2006 – 03/2013	125 / 170	0588-AAW
A3 Sportback (8PA)	2.0 TDI	03/2006 – 03/2013	125 / 170	0588-AIF
A3 Sportback (8PA)	2.0 TDI quattro	03/2006 – 03/2013	125 / 170	0588-AAV
A3 Sportback (8PA)	2.0 TDI quattro	03/2006 – 03/2013	125 / 170	0588-AIG
A4 (8K2, B8)	2.0 TDI	11/2007 – 12/2015	100 / 136	0588-AGY
A4 (8K2, B8)	2.0 TDI	11/2007 – 12/2015	105 / 143	0588-AGR
A4 (8K2, B8)	2.0 TDI	08/2008 – 12/2015	120 / 163	0588-AHG
A4 (8K2, B8)	2.0 TDI quattro	11/2008 – 12/2015	105 / 143	0588-AJT
A4 (8K2, B8)	2.0 TDI	11/2011 – 12/2015	130 / 177	0588-ASY
A4 (8K2, B8)	2.0 TDI quattro	11/2011 – 12/2015	130 / 177	0588-AUB
A4 Allroad (8KH, B8)	2.0 TDI quattro	04/2009 – 05/2016	120 / 163	0588-AKI
A4 Allroad (8KH, B8)	2.0 TDI quattro	04/2009 – 05/2016	120 / 163	0588-AQD
A4 Allroad (8KH, B8)	2.0 TDI quattro	09/2009 – 05/2016	100 / 136	0588-AKG
A4 Allroad (8KH, B8)	2.0 TDI quattro	09/2009 – 05/2016	100 / 136	0588-AQC
A4 Allroad (8KH, B8)	2.0 TDI quattro	09/2009 – 05/2016	105 / 143	0588-APH
A4 Allroad (8KH, B8)	2.0 TDI quattro	11/2011 – 05/2016	130 / 177	0588-ASW
A4 Allroad (8KH, B8)	2.0 TDI quattro	11/2011 – 05/2016	130 / 177	0588-AUQ
A4 Avant (8K5, B8)	2.0 TDI	04/2008 – 12/2015	100 / 136	0588-AHB
A4 Avant (8K5, B8)	2.0 TDI	04/2008 – 12/2015	100 / 136	0588-API
A4 Avant (8K5, B8)	2.0 TDI	04/2008 – 12/2015	105 / 143	0588-AHA
A4 Avant (8K5, B8)	2.0 TDI	04/2008 – 12/2015	105 / 143	0588-APG
A4 Avant (8K5, B8)	2.0 TDI quattro	04/2008 – 12/2015	105 / 143	0588-AJU
A4 Avant (8K5, B8)	2.0 TDI	08/2008 – 12/2015	120 / 163	0588-AHD
A4 Avant (8K5, B8)	2.0 TDI	08/2008 – 12/2015	120 / 163	0588-APM
A4 Avant (8K5, B8)	2.0 TDI	11/2011 – 12/2015	130 / 177	0588-ASX
A4 Avant (8K5, B8)	2.0 TDI	11/2011 – 12/2015	130 / 177	0588-ATW
A4 Avant (8K5, B8)	2.0 TDI quattro	11/2011 – 12/2015	130 / 177	0588-ASW
A5 (8T3)	2.0 TDI	08/2008 – 01/2017	120 / 163	0588-AHF
A5 (8T3)	2.0 TDI	10/2011 – 01/2017	130 / 177	0588-ARZ
A5 (8T3)	2.0 TDI quattro	12/2011 – 01/2017	130 / 177	0588-ASZ
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	100 / 136	0588-ALK
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	100 / 136	0588-API
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	105 / 143	0588-ALI
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	105 / 143	0588-APG
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	120 / 163	0588-AKW
A5 Sportback (8TA)	2.0 TDI	09/2009 – 01/2017	120 / 163	0588-APM
A5 Sportback (8TA)	2.0 TDI	10/2011 – 01/2017	130 / 177	0588-ASE
A5 Sportback (8TA)	2.0 TDI	10/2011 – 01/2017	130 / 177	0588-ATW
A5 Sportback (8TA)	2.0 TDI quattro	12/2011 – 01/2017	130 / 177	0588-ATA
A5 Sportback (8TA)	2.0 TDI quattro	12/2011 – 01/2017	130 / 177	0588-AUQ
A6 (4G2, 4GC, C7)	2.0 TDI	03/2011 – 09/2018	120 / 163	0588-AOD
A6 (4G2, 4GC, C7)	2.0 TDI	03/2011 – 09/2018	130 / 177	0588-AQY
A6 (4G2, 4GC, C7)	2.0 TDI	01/2012 – 09/2018	100 / 136	0588-AUU
A6 Avant (4G5, 4GD, C7)	2.0 TDI	05/2011 – 09/2018	120 / 163	0588-ART
A6 Avant (4G5, 4GD, C7)	2.0 TDI	05/2011 – 09/2018	120 / 163	0588-ARX
A6 Avant (4G5, 4GD, C7)	2.0 TDI	05/2011 – 09/2018	130 / 177	0588-ARK
A6 Avant (4G5, 4GD, C7)	2.0 TDI	05/2011 – 09/2018	130 / 177	0588-ARW
A6 Avant (4G5, 4GD, C7)	2.0 TDI	01/2012 – 09/2018	100 / 136	0588-AUT
A6 Avant (4G5, 4GD, C7)	2.0 TDI	01/2012 – 09/2018	100 / 136	0588-AUW
Q3 (8UB, 8UG)	2.0 TDI	06/2011 – 04/2015	130 / 177	0588-AWT
Q3 (8UB, 8UG)	2.0 TDI	06/2011 – 04/2015	130 / 177	0588-AWW
Q3 (8UB, 8UG)	2.0 TDI quattro	06/2011 – 04/2015	120 / 163	0588-ASS
Q3 (8UB, 8UG)	2.0 TDI quattro	06/2011 – 04/2015	120 / 163	0588-ATQ
Q3 (8UB, 8UG)	2.0 TDI quattro	06/2011 – 10/2018	130 / 177	0588-ASO
Q3 (8UB, 8UG)	2.0 TDI quattro	06/2011 – 10/2018	130 / 177	0588-ATP
Q3 (8UB, 8UG)	2.0 TDI	09/2011 – 10/2018	100 / 136	0588-ASV
Q3 (8UB, 8UG)	2.0 TDI	09/2011 – 10/2018	100 / 136	0588-ATS
Q3 (8UB, 8UG)	2.0 TDI	09/2011 – 10/2018	103 / 140	0588-ASN
Q3 (8UB, 8UG)	2.0 TDI	09/2011 – 10/2018	103 / 140	0588-ATT
Q3 (8UB, 8UG)	2.0 TDI quattro	01/2012 – 10/2018	103 / 140	0588-AUS
Q3 (8UB, 8UG)	2.0 TDI quattro	01/2012 – 10/2018	103 / 140	0588-AUV
Q5 (8RB)	2.0 TDI quattro	from 11/2008	120 / 163	0588-AIX
Q5 (8RB)	2.0 TDI quattro	from 11/2008	120 / 163	0588-ALV
Q5 (8RB)	2.0 TDI quattro	from 11/2008	120 / 163	0588-AOI
Q5 (8RB)	2.0 TDI quattro	from 11/2008	125 / 170	0588-AIW
Q5 (8RB)	2.0 TDI quattro	from 11/2008	125 / 170	0588-ALU
Q5 (8RB)	2.0 TDI quattro	from 11/2008	125 / 170	0588-AOH
Q5 (8RB)	2.0 TDI quattro	from 08/2009	100 / 136	0588-ALJ
Q5 (8RB)	2.0 TDI quattro	from 08/2009	100 / 136	0588-ALT
Q5 (8RB)	2.0 TDI quattro	from 08/2009	100 / 136	0588-AOG
Q5 (8RB)	2.0 TDI quattro	from 08/2009	105 / 143	0588-ALH
Q5 (8RB)	2.0 TDI quattro	from 08/2009	105 / 143	0588-ALS
Q5 (8RB)	2.0 TDI quattro	from 08/2009	105 / 143	0588-AOF
Q5 (8RB)	2.0 TDI	from 11/2010	100 / 136	0588-ARH
Q5 (8RB)	2.0 TDI	from 11/2010	100 / 136	0588-ARI
Q5 (8RB)	2.0 TDI	from 11/2010	105 / 143	0588-AQI
Q5 (8RB)	2.0 TDI	from 11/2010	105 / 143	0588-ARG
Q5 (8RB)	2.0 TDI quattro	from 06/2012	130 / 177	0588-AVU
Q5 (8RB)	2.0 TDI quattro	from 06/2012	130 / 177	0588-AWD

SEAT22 vehicles

Model	Engine	Years	kW / HP	HSN / TSN
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	103 / 140	7593-AFI
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	103 / 140	7593-AFL
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	103 / 140	7593-AFY
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	125 / 170	7593-AFM
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	125 / 170	7593-AFN
ALHAMBRA (710, 711)	2.0 TDI	from 06/2010	125 / 170	7593-AFZ
ALHAMBRA (710, 711)	2.0 TDI	06/2010 – 05/2011	100 / 136	7593-AFH
ALHAMBRA (710, 711)	2.0 TDI	06/2010 – 05/2011	100 / 136	7593-AFK
ALHAMBRA (710, 711)	2.0 TDI	06/2010 – 05/2011	100 / 136	7593-AFX
ALHAMBRA (710, 711)	2.0 TDI	from 05/2011	85 / 115	7593-AFS
ALHAMBRA (710, 711)	2.0 TDI	from 05/2011	85 / 115	7593-AFT
ALHAMBRA (710, 711)	2.0 TDI	from 05/2011	85 / 115	7593-AGH
ALHAMBRA (710, 711)	2.0 TDI 4Drive	from 05/2011	103 / 140	7593-AGG
ALHAMBRA (710, 711)	2.0 TDI 4Drive	from 05/2011	103 / 140	7593-AGK
ALHAMBRA (710, 711)	2.0 TDI 4Drive	from 05/2011	103 / 140	7593-AGL
ALHAMBRA (710, 711)	2.0 TDI	from 11/2012	130 / 177	–
EXEO (3R2)	2.0 TDI	from 12/2008	88 / 120	7593-AED
EXEO (3R2)	2.0 TDI	from 12/2008	105 / 143	7593-ADR
EXEO (3R2)	2.0 TDI	from 02/2009	125 / 170	7593-ADS
EXEO ST (3R5)	2.0 TDI	from 05/2009	105 / 143	7593-ADZ
EXEO ST (3R5)	2.0 TDI	from 05/2009	125 / 170	7593-AEA
EXEO ST (3R5)	2.0 TDI	from 07/2009	88 / 120	7593-AEE

SKODA9 vehicles

Model	Engine	Years	kW / HP	HSN / TSN
SUPERB II (3T4)	2.0 TDI 16V 4x4	11/2010 – 05/2015	103 / 140	8004-ALI
SUPERB II Kombi (3T5)	2.0 TDI	10/2009 – 05/2015	125 / 170	8004-AIQ
SUPERB II Kombi (3T5)	2.0 TDI	10/2009 – 05/2015	125 / 170	8004-AJI
SUPERB II Kombi (3T5)	2.0 TDI 16V	10/2009 – 05/2015	103 / 140	8004-AIO
SUPERB II Kombi (3T5)	2.0 TDI 16V	10/2009 – 05/2015	103 / 140	8004-AJG
SUPERB II Kombi (3T5)	2.0 TDI 4x4	10/2009 – 05/2015	125 / 170	8004-AIT
SUPERB II Kombi (3T5)	2.0 TDI 4x4	10/2009 – 05/2015	125 / 170	8004-AJJ
SUPERB II Kombi (3T5)	2.0 TDI 16V 4x4	11/2010 – 05/2015	103 / 140	8004-ALJ
SUPERB II Kombi (3T5)	2.0 TDI 16V 4x4	11/2010 – 05/2015	103 / 140	8004-ALK

VW125 vehicles

Model	Engine	Years	kW / HP	HSN / TSN
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B)	2.0 BiTDI	from 11/2011	132 / 180	0603-BJB
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B)	2.0 BiTDI	from 11/2011	132 / 180	0603-BJC
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B)	2.0 BiTDI 4motion	from 11/2011	132 / 180	0603-BHY
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B)	2.0 BiTDI 4motion	from 11/2011	132 / 180	0603-BHZ
BEETLE (5C1, 5C2)	2.0 TDI	04/2011 – 07/2016	103 / 140	0603-BIB
CC (358)	2.0 TDI 4motion	11/2011 – 01/2013	125 / 170	–
CC (358)	2.0 TDI	11/2011 – 12/2016	100 / 136	–
CC (358)	2.0 TDI	11/2011 – 12/2016	103 / 140	–
CC (358)	2.0 TDI	11/2011 – 12/2016	125 / 170	–
CC (358)	2.0 TDI 4motion	11/2011 – 12/2016	103 / 140	–
CC (358)	2.0 TDI	12/2012 – 12/2016	130 / 177	0603-BJQ
EOS (1F7, 1F8)	2.0 TDI 16V	05/2008 – 08/2015	103 / 140	0603-AJL
EOS (1F7, 1F8)	2.0 TDI	11/2010 – 08/2015	100 / 136	0603-BAF
GOLF VI (5K1)	2.0 TDI	10/2008 – 11/2012	100 / 136	0603-AZN
GOLF VI (5K1)	2.0 TDI	10/2008 – 05/2013	103 / 140	0603-ALT
GOLF VI (5K1)	2.0 TDI	10/2008 – 05/2013	103 / 140	0603-AZO
GOLF VI (5K1)	2.0 TDI	04/2009 – 11/2012	125 / 170	0603-ALZ
GOLF VI (5K1)	2.0 TDI 4motion	05/2009 – 11/2012	103 / 140	0603-ALU
GOLF VI (5K1)	2.0 TDI 4motion	05/2009 – 11/2012	103 / 140	0603-AZP
JETTA IV (162, 163, AV3, AV2)	2.0 TDI	from 02/2011	103 / 140	0603-AZA
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-AQN
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AQO
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 TDI	09/2009 – 08/2015	103 / 140	0603-AQX
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 TDI 4motion	09/2009 – 08/2015	103 / 140	0603-ARK
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 TDI	05/2010 – 08/2015	100 / 136	0603-ATK
MULTIVAN T5 (7HM, 7HN, 7HF, 7EF, 7EM, 7EN)	2.0 TDI 4motion	05/2010 – 08/2015	100 / 136	0603-ATL
PASSAT (362)	2.0 TDI 4motion	08/2010 – 01/2013	125 / 170	0603-AYO
PASSAT (362)	2.0 TDI 4motion	08/2010 – 01/2013	125 / 170	0603-BCY
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	100 / 136	0603-AYG
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	100 / 136	0603-BCU
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	103 / 140	0603-BCV
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	103 / 140	0603-AYI
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	125 / 170	0603-AYM
PASSAT (362)	2.0 TDI	08/2010 – 12/2014	125 / 170	0603-BCX
PASSAT (362)	2.0 TDI 4motion	08/2010 – 12/2014	103 / 140	0603-AYK
PASSAT (362)	2.0 TDI 4motion	08/2010 – 12/2014	103 / 140	0603-BCW
PASSAT (362)	2.0 TDI	12/2012 – 12/2014	130 / 177	0603-BJT
PASSAT ALLTRACK (365)	2.0 TDI	01/2012 – 12/2014	103 / 140	0603-AYJ
PASSAT ALLTRACK (365)	2.0 TDI	01/2012 – 12/2014	103 / 140	0603-BDH
PASSAT ALLTRACK (365)	2.0 TDI 4motion	01/2012 – 12/2014	103 / 140	0603-AYL
PASSAT ALLTRACK (365)	2.0 TDI 4motion	01/2012 – 12/2014	103 / 140	0603-BDI
PASSAT ALLTRACK (365)	2.0 TDI 4motion	01/2012 – 12/2014	125 / 170	0603-AYP
PASSAT ALLTRACK (365)	2.0 TDI 4motion	01/2012 – 12/2014	125 / 170	0603-BDK
PASSAT ALLTRACK (365)	2.0 TDI 4motion	01/2013 – 12/2014	130 / 177	–
PASSAT CC (357)	2.0 TDI	06/2008 – 05/2011	100 / 136	0603-ANU
PASSAT CC (357)	2.0 TDI	06/2008 – 01/2012	103 / 140	0603-ANC
PASSAT CC (357)	2.0 TDI	06/2008 – 01/2012	125 / 170	0603-ANV
PASSAT CC (357)	2.0 TDI 4motion	08/2009 – 01/2012	103 / 140	0603-AQB
PASSAT CC (357)	2.0 TDI 4motion	11/2009 – 01/2012	125 / 170	0603-ARR
PASSAT Variant (365)	2.0 TDI 4motion	08/2010 – 01/2013	125 / 170	0603-AYP
PASSAT Variant (365)	2.0 TDI 4motion	08/2010 – 01/2013	125 / 170	0603-BDK
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	100 / 136	0603-AYH
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	100 / 136	0603-BDG
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	103 / 140	0603-AYJ
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	103 / 140	0603-BDH
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	125 / 170	0603-AYN
PASSAT Variant (365)	2.0 TDI	08/2010 – 12/2014	125 / 170	0603-BDJ
PASSAT Variant (365)	2.0 TDI 4motion	08/2010 – 12/2014	103 / 140	0603-AYL
PASSAT Variant (365)	2.0 TDI 4motion	08/2010 – 12/2014	103 / 140	0603-BDI
PASSAT Variant (365)	2.0 TDI	12/2012 – 12/2014	130 / 177	0603-BJV
PASSAT Variant (365)	2.0 TDI	12/2012 – 12/2014	130 / 177	0603-BKC
SCIROCCO (137, 138)	2.0 TDI	05/2009 – 11/2017	125 / 170	0603-APQ
SCIROCCO (137, 138)	2.0 TDI	01/2013 – 11/2017	130 / 177	–
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	100 / 136	0603-AUA
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	100 / 136	0603-AUB
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	100 / 136	0603-AWN
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	103 / 140	0603-ATU
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	103 / 140	0603-ATV
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2010	103 / 140	0603-AWO
SHARAN (7N1, 7N2)	2.0 TDI	from 08/2010	125 / 170	0603-ATY
SHARAN (7N1, 7N2)	2.0 TDI	from 08/2010	125 / 170	0603-ATZ
SHARAN (7N1, 7N2)	2.0 TDI	from 08/2010	125 / 170	0603-AYQ
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2011	85 / 115	0603-ATS
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2011	85 / 115	0603-ATT
SHARAN (7N1, 7N2)	2.0 TDI	from 05/2011	85 / 115	0603-BGA
SHARAN (7N1, 7N2)	2.0 TDI 4motion	from 05/2011	103 / 140	0603-ATW
SHARAN (7N1, 7N2)	2.0 TDI 4motion	from 05/2011	103 / 140	0603-ATX
SHARAN (7N1, 7N2)	2.0 TDI 4motion	from 05/2011	103 / 140	0603-BFZ
SHARAN (7N1, 7N2)	2.0 TDI	from 01/2013	130 / 177	–
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	103 / 140	0603-AKS
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	103 / 140	0603-AMR
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	103 / 140	0603-AWZ
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	103 / 140	0603-AXA
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	125 / 170	0603-ANK
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	125 / 170	0603-ANL
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	125 / 170	0603-AXB
TIGUAN (5N_)	2.0 TDI 4motion	09/2007 – 07/2018	125 / 170	0603-AXC
TIGUAN (5N_)	2.0 TDI 4motion	11/2007 – 07/2018	100 / 136	0603-AKT
TIGUAN (5N_)	2.0 TDI 4motion	11/2007 – 07/2018	100 / 136	0603-AMQ
TIGUAN (5N_)	2.0 TDI 4motion	11/2007 – 07/2018	100 / 136	0603-AWW
TIGUAN (5N_)	2.0 TDI 4motion	11/2007 – 07/2018	100 / 136	0603-AWX
TIGUAN (5N_)	2.0 TDI	03/2008 – 07/2018	103 / 140	0603-ANP
TIGUAN (5N_)	2.0 TDI	03/2008 – 07/2018	103 / 140	0603-AWY
TIGUAN (5N_)	2.0 TDI	05/2010 – 07/2018	81 / 110	0603-ATM
TIGUAN (5N_)	2.0 TDI	05/2010 – 07/2018	81 / 110	0603-BGO
TIGUAN (5N_)	2.0 TDI 4motion	11/2012 – 07/2018	130 / 177	0603-BJO
TIGUAN (5N_)	2.0 TDI 4motion	11/2012 – 07/2018	130 / 177	0603-BJP
TIGUAN (5N_)	2.0 TDI 4motion	11/2012 – 07/2018	130 / 177	0603-BJZ
TIGUAN (5N_)	2.0 TDI 4motion	11/2012 – 07/2018	130 / 177	0603-BKA
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-AQL
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-AQQ
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AQM
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AQO
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AQR
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI	09/2009 – 08/2015	103 / 140	0603-AQU
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI	09/2009 – 08/2015	103 / 140	0603-AQZ
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI 4motion	09/2009 – 08/2015	103 / 140	0603-ARJ
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI 4motion	09/2009 – 08/2015	103 / 140	0603-ARL
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI	05/2010 – 08/2015	100 / 136	0603-ATK
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI	05/2010 – 08/2015	100 / 136	0603-AUN
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI	05/2010 – 08/2015	100 / 136	0603-AUP
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI 4motion	05/2010 – 08/2015	100 / 136	0603-ATL
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI 4motion	05/2010 – 08/2015	100 / 136	0603-AUO
TRANSPORTER T5 Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC)	2.0 TDI 4motion	05/2010 – 08/2015	100 / 136	0603-AUQ
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-AVV
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-ASR
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AVW
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 TDI	09/2009 – 08/2015	103 / 140	0603-ARI
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 TDI	09/2009 – 08/2015	103 / 140	0603-AVR
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 TDI 4motion	09/2009 – 08/2015	103 / 140	0603-AVS
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 TDI	05/2010 – 08/2015	100 / 136	0603-AVT
TRANSPORTER T5 Kasten (7HA, 7HH, 7EA, 7EH)	2.0 TDI 4motion	05/2010 – 08/2015	100 / 136	0603-AVU
TRANSPORTER T5 Pritsche/Fahrgestell (7JD, 7JE, 7JL, 7JY, 7JZ	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-ARP
TRANSPORTER T5 Pritsche/Fahrgestell (7JD, 7JE, 7JL, 7JY, 7JZ	2.0 BiTDI	09/2009 – 08/2015	132 / 180	0603-AWE
TRANSPORTER T5 Pritsche/Fahrgestell (7JD, 7JE, 7JL, 7JY, 7JZ	2.0 BiTDI 4motion	09/2009 – 08/2015	132 / 180	0603-AWF

↑ Back to search

There are no reviews yet.

Fastening screw for oil pump on 03G115105A engines

5,99 € *

strengthened Driver fit for VAG 2,0 TDI Balancer shaft Modul, Oil pump

89,90 € *

Old price: ~~159,00 €~~

Others also bought:
